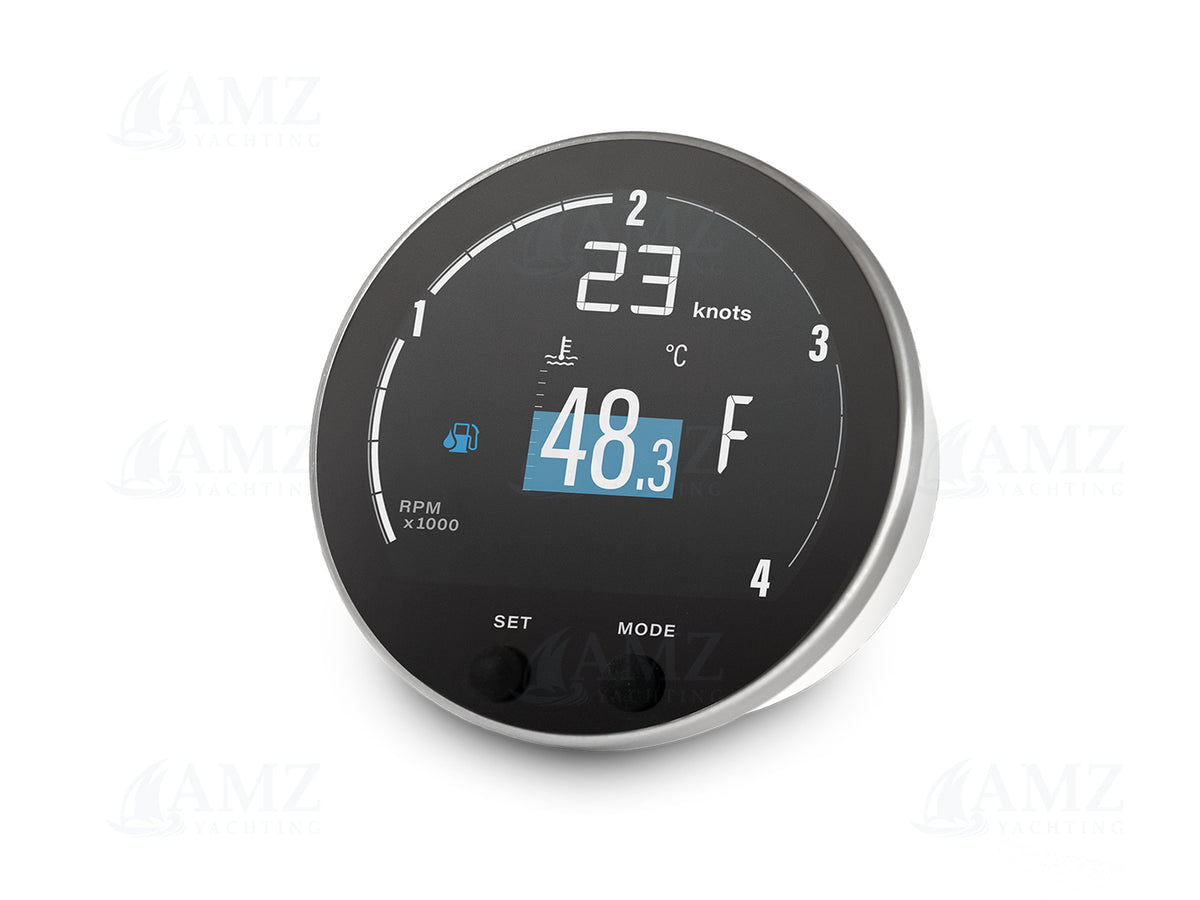

The VMH 35-D is the perfect standalone solution for monitoring your diesel engine.
With a configurable dial scale of 3000 or 4000 RPM, the VMH 35-D is a compact display capable of showing a wide amount of data from your engine, battery, tank, and GPS.
Specific information about your diesel engine is provided together with alarms, either received from the SAE J1939 bus or locally set through the embedded menu.
Both 12V and 24V systems are supported, as well as EasyLink connectivity which allows your dashboard to be expanded with additional VMH 14 satellite displays to always keep your sensitive data under control.
Plug & play multifunction gauge with pre-installed connectors for Volvo Penta.
Daten
Input supply voltage : 9-32V DC
Nominal voltage : 12V|24V
Consumption : < 170mA @ 12V
Connectivity : NMEA2000|J1939|EasyLink
NMEA2000 inputs : Yes
NMEA2000 outputs : Yes
J1939 input : 1x
EasyLink : 1x
Data transfer/conversion : J1939 to NMEA2000
Analogue input type : Resistive (Ω)|Frequency (Hz)
Resistive signal inputs (Ω) : 2x
Frequency signal inputs (Hz) : 2x
Signal resistance range : 0-400Ω
Alarm inputs : 1x
Transducer inputs : Speed
Speed transducer inputs : 1x
RPM range : 4000rpm
Connector type : Micro-C (NMEA2000)|Molex MX150
Diameter : 85mm
