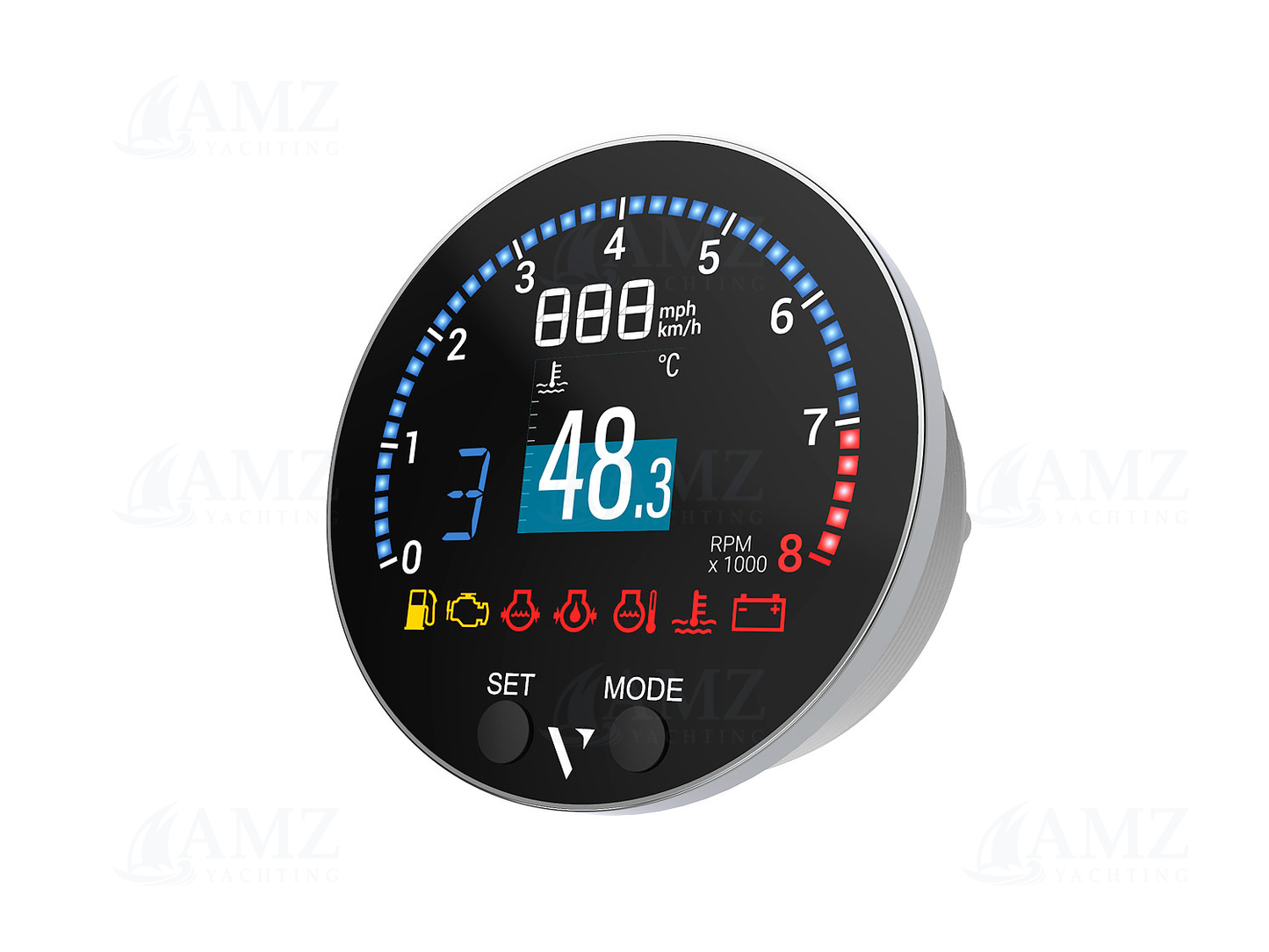

VMH35-S Multifunction Gauge 85mm
VMH35-S Multifunction Gauge 85mm
SKU:B00143501
Regular price
CHF 298.20
Regular price
Sale price
CHF 298.20
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
NMEA 2000 certified all-in-one instrument for engine diagnostics
The Veratron VMH35-S is a highly capable multifunction instrument engineered to display and track critical engine diagnostics at a single glance. It converts your analog input data fully automatically and feeds it directly into the NMEA 2000 network. Thanks to its certified embedded gateway, all telemetry is instantly broadcasted to your onboard marine electronics network.
The Veratron VMH35-S is a highly capable multifunction instrument engineered to display and track critical engine diagnostics at a single glance. It converts your analog input data fully automatically and feeds it directly into the NMEA 2000 network. Thanks to its certified embedded gateway, all telemetry is instantly broadcasted to your onboard marine electronics network.
- Optimized Hybrid Inputs: Features 1x resistive signal input (Ω), 1x voltage signal input (V), and 1x frequency signal input (Hz) to read a wide variety of sensor types directly.
- Embedded Navigation: Built-in GNSS/GPS receiver tracks and renders vital navigation data overlays directly on the helm display.
- IBS Battery Telemetry: A dedicated LIN bus channel records essential diagnostic data from your 12V Intelligent Battery Sensor (Veratron IBS).
- Slim Footprint: Standard 85mm installation diameter with an energy-efficient operating profile consuming less than 100 mA.
- Swiss Delivery Perks: Dispatched swiftly from our domestic warehouse with fair CHF pricing and zero import or customs hassle.
Specifications
Specifications
- Input supply voltage : 9-16 V DC
- Nominal voltage : 12V
- Consumption : < 100 mA @ 12 V
- Connectivity : NMEA2000|EasyLink|LIN Bus
- NMEA2000 inputs : Yes
- NMEA2000 outputs : Yes
- LIN inputs : 1x
- EasyLink : 1x
- Analogue input type : Resistive (Ω)|Frequency (Hz)|Voltage (V)|IBS|LIN Bus
- Resistive signal inputs (Ω) : 1x
- Voltage signal inputs (V) : 1x
- Frequency signal inputs (Hz) : 1x
- Integrated features : GPS antenna
- Connector type : Micro-C (NMEA2000)|Molex MX150
- Diameter : 85mm
