VMH35 Outboard Engine Kit

VMH35 Outboard Engine Kit

B00085502

CHF 562.45
CHF 562.45
Sale Sold out
Taxes included. Shipping calculated at checkout.
Premium all-in-one digital monitoring setup for outboard engines
This NMEA 2000 certified Veratron VMH35 kit offers a reliable method to track and visualize your outboard engine parameters on a sleek display. It converts your analog input data fully automatically and feeds it directly into the NMEA 2000 network. Powered by its embedded certified gateway, it shares vital telemetry across your entire marine network.
  • Embedded Navigation: Built-in high-performance GNSS/GPS receiver tracks and renders accurate real-time positioning metrics on the helm screen.
  • Hybrid Sensor Integration: Equipped with 2x resistive signal inputs (Ω) and 1x frequency signal input (Hz) to read analog fuel levels, trim positions, or tachometer data directly.
  • IBS Battery Telemetry: Includes a dedicated LIN bus port and a genuine Intelligent Battery Sensor (IBS) to deliver precise 12V battery health diagnostics.
  • All-In-One Box: Packed ready to mount with the 85mm VMH35 instrument, hardware IBS module, battery pole adapter, and marine wiring harness.

Specifications

  • Nominal voltage : 12V
  • Consumption : < 100 mA @ 12 V
  • Connectivity : NMEA2000|EasyLink|LIN Bus
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • LIN inputs : 1x
  • EasyLink : 1x
  • Analogue input type : Resistive (Ω)|Frequency (Hz)|IBS|LIN Bus
  • Resistive signal inputs (Ω) : 2x
  • Frequency signal inputs (Hz) : 1x
  • Integrated features : GPS antenna
  • Connector type : Micro-C (NMEA2000)|Molex MX150
  • Diameter : 85mm

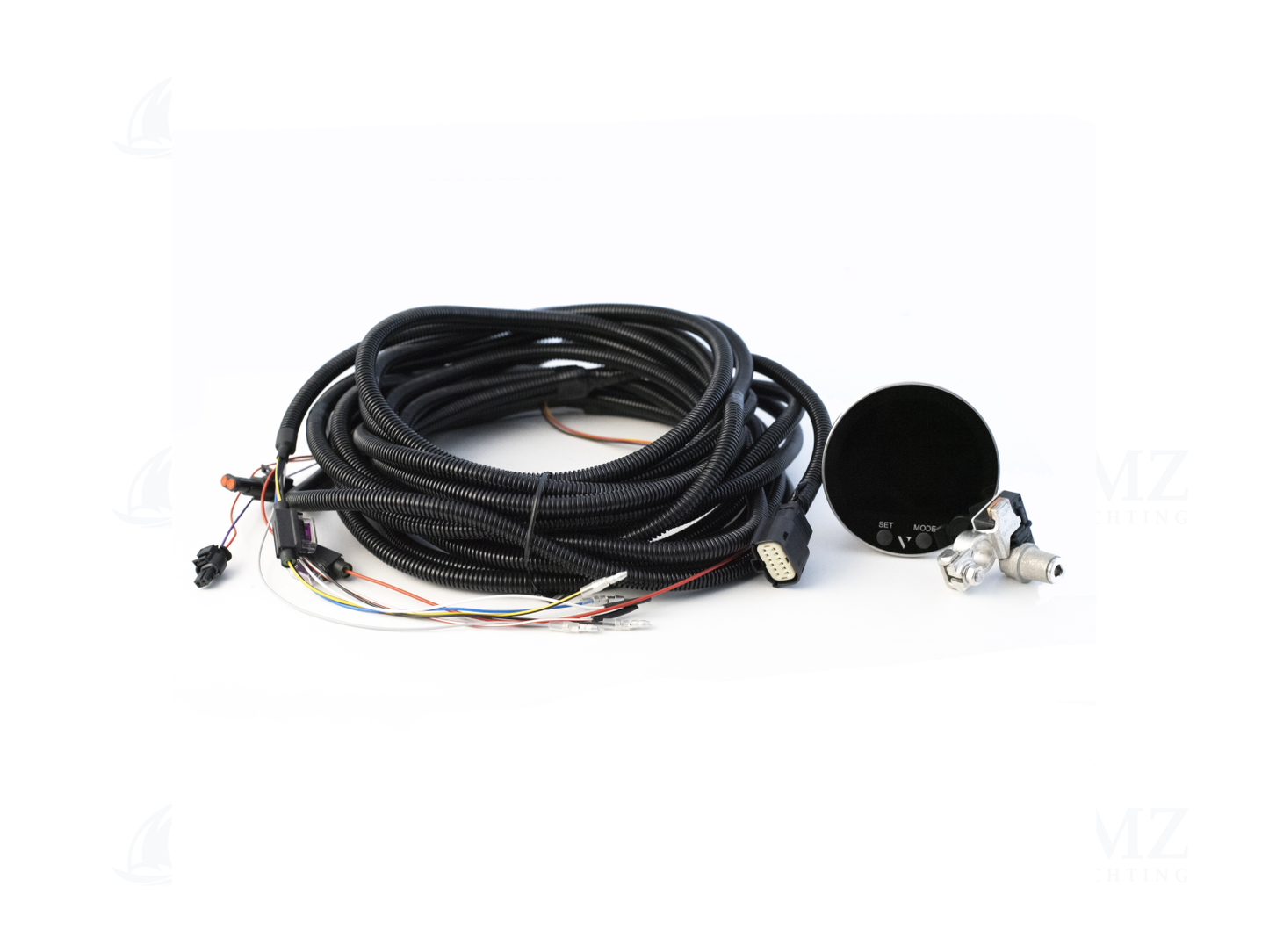

Package content

  • 1x VMH35 display
  • 1x IBS
  • 1x Battery pole adapter
  • 1x Wire harness
