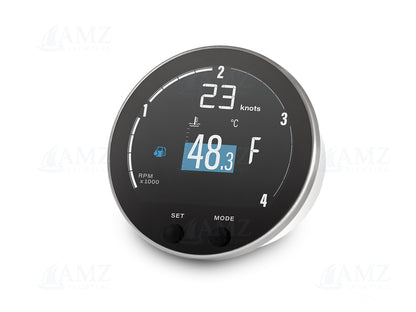

VMH35-D Multifunction Gauge 85mm for Suzuki

VMH35-D Multifunction Gauge 85mm for Suzuki

SKU:B00204101

Regular price CHF 348.00
Regular price Sale price CHF 348.00
Sale Sold out
All prices are final (Art. 10 Abs. 2 MWSTG) Shipping calculated at checkout.

The VMH 35-D is the perfect standalone solution for monitoring your Suzuki outboard engine.

Equipped with analogue inputs it is also well suited to refitting older engines allowing the direct connection of various sensors such as fuel, trim and tachometer, while the built-in NMEA 2000 gateway distributes

these measurements to other digital network devices such as chartplotters, saving the need for an external converter.


Plug & play multifunction gauge with pre-installed connectors for Suzuki.

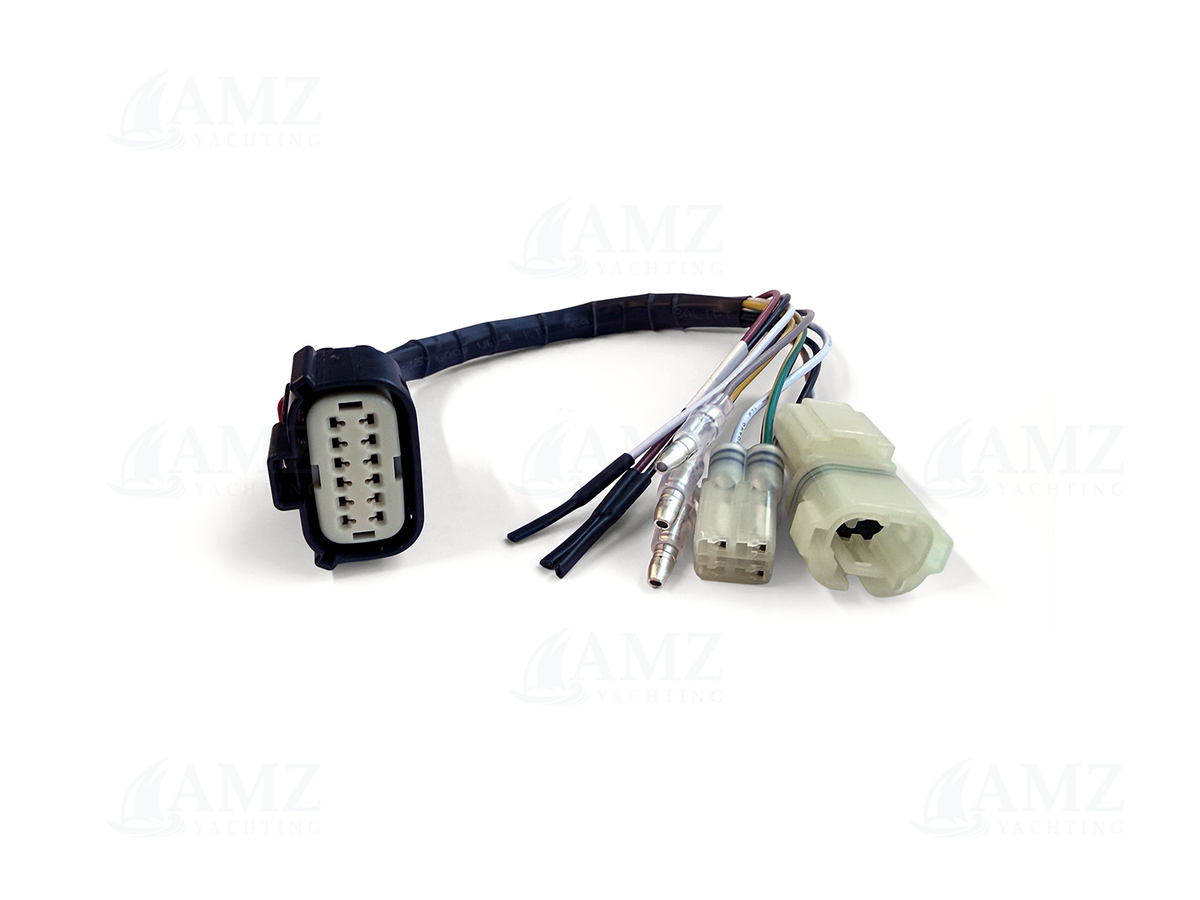

Suzuki harness B00208201.



Manual

Specifications

  • Input supply voltage : 9-16V DC
  • Nominal voltage : 12V
  • Consumption : < 100mA @ 12V
  • Connectivity : NMEA2000
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • Analogue input type : Resistive (Ω)|Frequency (Hz)|Trim (PWM)
  • Resistive signal inputs (Ω) : 1x
  • Frequency signal inputs (Hz) : 1x
  • Signal resistance range : 0-400Ω
  • Alarm inputs : 2x
  • Alarm outputs : 1x
  • RPM range : 4000rpm
  • Connector type : Micro-C (NMEA2000)|Molex MX150
  • Diameter : 85mm

Package content

GPS receiver
