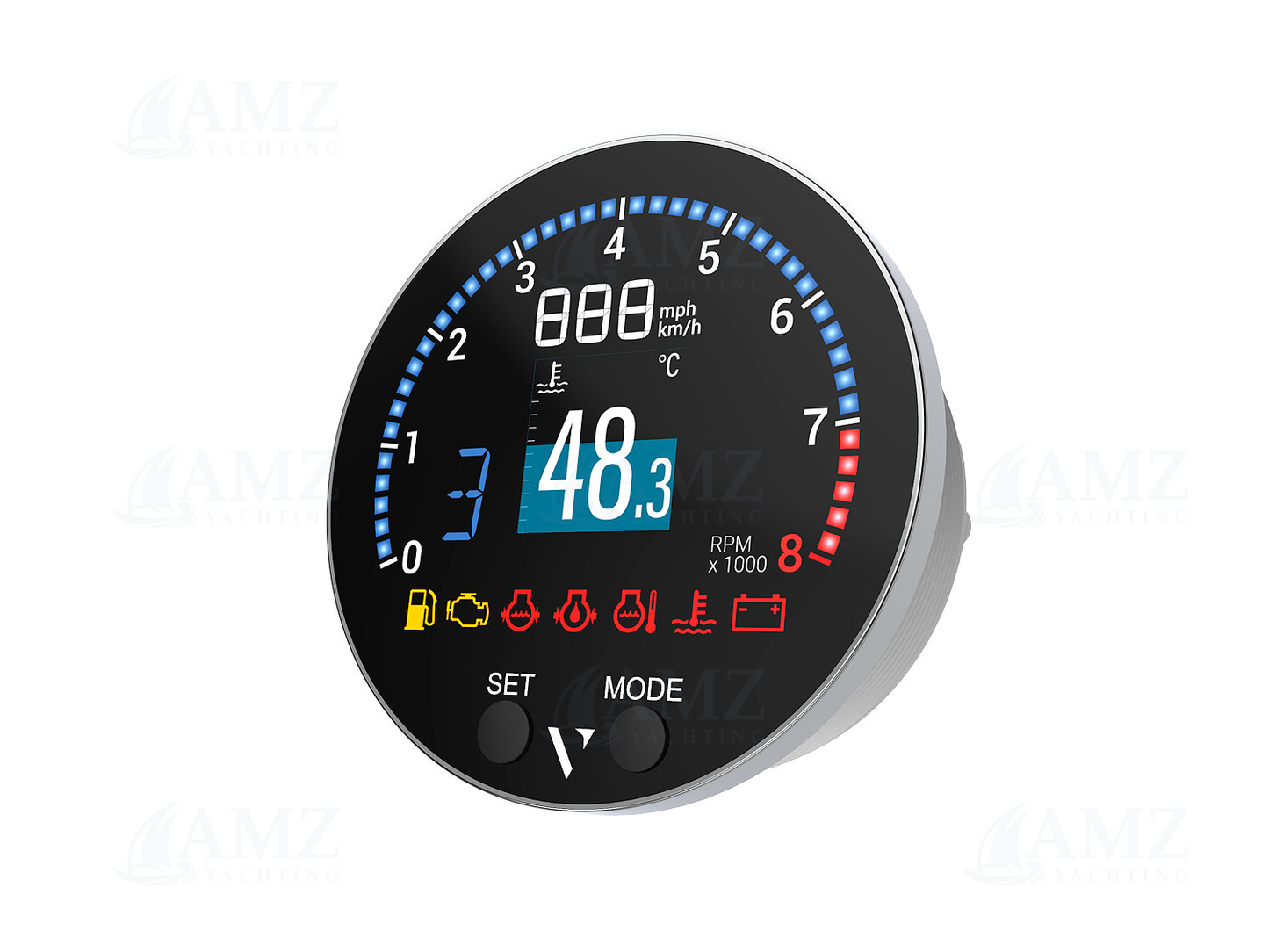

VMH35 Multifunction Gauge 85mm
VMH35 Multifunction Gauge 85mm
SKU:B00085501
Regular price
CHF 298.20
Regular price
Sale price
CHF 298.20
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
The ultimate all-in-one instrument for space-saving helm layouts
The Veratron VMH35 delivers precise real-time tracking for essential vessel electronics on a clean display. It converts your analog input data fully automatically and feeds it directly into the NMEA 2000 network. Powered by its embedded certified gateway, it seamlessly broadcasts vital telemetry to all network devices.
The Veratron VMH35 delivers precise real-time tracking for essential vessel electronics on a clean display. It converts your analog input data fully automatically and feeds it directly into the NMEA 2000 network. Powered by its embedded certified gateway, it seamlessly broadcasts vital telemetry to all network devices.
- Direct Analog Inputs: Built with 2x resistive signal inputs (Ω) and 1x frequency signal input (Hz) to connect legacy engine parameters and diagnostics seamlessly.
- Sensor Adaptability: Highly versatile mapping for various fluid level and pressure senders across a wide 0–400 Ω signal resistance range.
- Built-in Navigation: Features an integrated GNSS/GPS receiver to display accurate positioning and steering details instantly.
- IBS Battery Tracking: Includes a dedicated LIN bus port to handle core diagnostics from a 12V Intelligent Battery Sensor.
- Slim Footprint: Standard 85mm housing diameter with an ultra-low power consumption profile.
- Swiss Delivery Perks: Dispatched swiftly from our domestic warehouse with fair CHF pricing and zero import or customs hassle.
Specifications
Specifications
- Input supply voltage : 9-16 V DC
- Nominal voltage : 12V
- Consumption : < 100 mA @ 12 V
- Connectivity : NMEA2000|EasyLink|LIN Bus
- NMEA2000 inputs : Yes
- NMEA2000 outputs : Yes
- LIN inputs : 1x
- EasyLink : 1x
- Analogue input type : Resistive (Ω)|Frequency (Hz)|IBS|LIN Bus
- Resistive signal inputs (Ω) : 2x
- Frequency signal inputs (Hz) : 1x
- Signal resistance range : 0-400Ω
- RPM range : 8000rpm
- Integrated features : GPS antenna
- Connector type : Micro-C (NMEA2000)|Molex MX150
- Diameter : 85mm
Package content
Package content
