LinkUp 0-5V Gateway
LinkUp 0-5V Gateway
SKU:B00059201
Regular price
CHF 134.50
Regular price
Sale price
CHF 134.50
All prices are final (Art. 10 Abs. 2 MWSTG)
Shipping calculated at checkout.
Convert vessel and engine electronics to NMEA 2000 with ease
The voltage-based LinkUp gateway offers a reliable method to bridge your active electronic 0-5V sensors with modern marine networks. It translates standard voltage inputs directly into digital NMEA 2000 data streams.
The voltage-based LinkUp gateway offers a reliable method to bridge your active electronic 0-5V sensors with modern marine networks. It translates standard voltage inputs directly into digital NMEA 2000 data streams.
- For 0-5V Voltage Sensors: Specifically engineered for seamless plug-and-play installation with electronic, voltage-based marine sensors.
- Multi-Fluid Applications: Compatible with fuel, fresh water, and waste water monitoring across a 0–5 V signal input range.
- Heavy-Duty Connectors: Features an integrated Micro-C network plug and a secure AMP Superseal connection.
- Swiss Delivery Perks: Fast dispatch from our domestic warehouse with fair CHF pricing and no import hassle.
Specifications
Specifications
- Input supply voltage : 0-5 V
- Nominal voltage : 12V
- Consumption : ≤ 100 mA
- Liquid type : Fuel|Fresh water|Waste water
- Connectivity : NMEA2000
- NMEA2000 outputs : Yes
- Data transfer/conversion : Analogue to NMEA2000
- Analogue input type : Voltage (V)
- Signal voltage range : 0-5V
- Connector type : Micro-C (NMEA2000)|AMP superseal plug

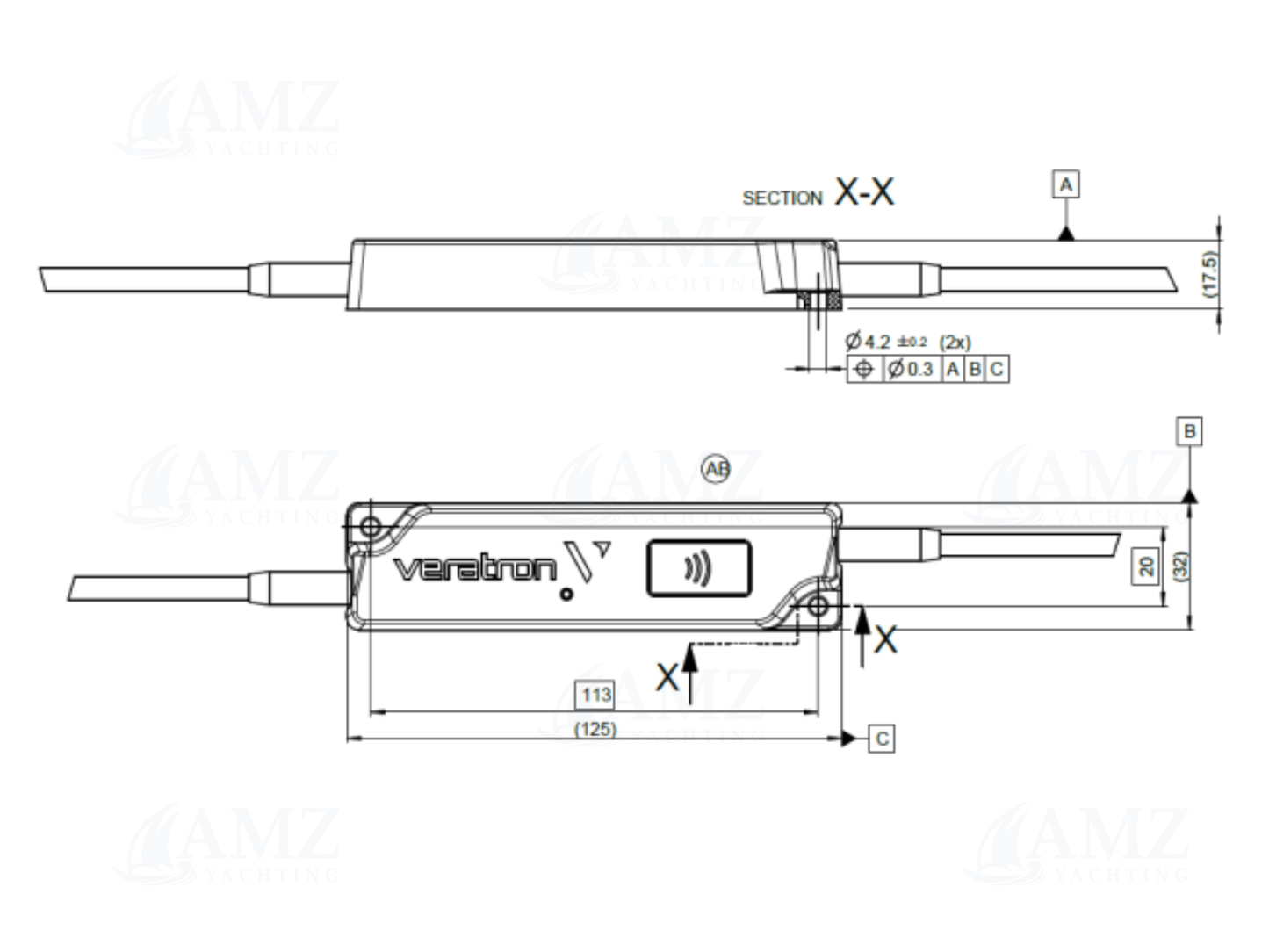

- Dimensions : 125x17.5x32mm
Package content
Package content
